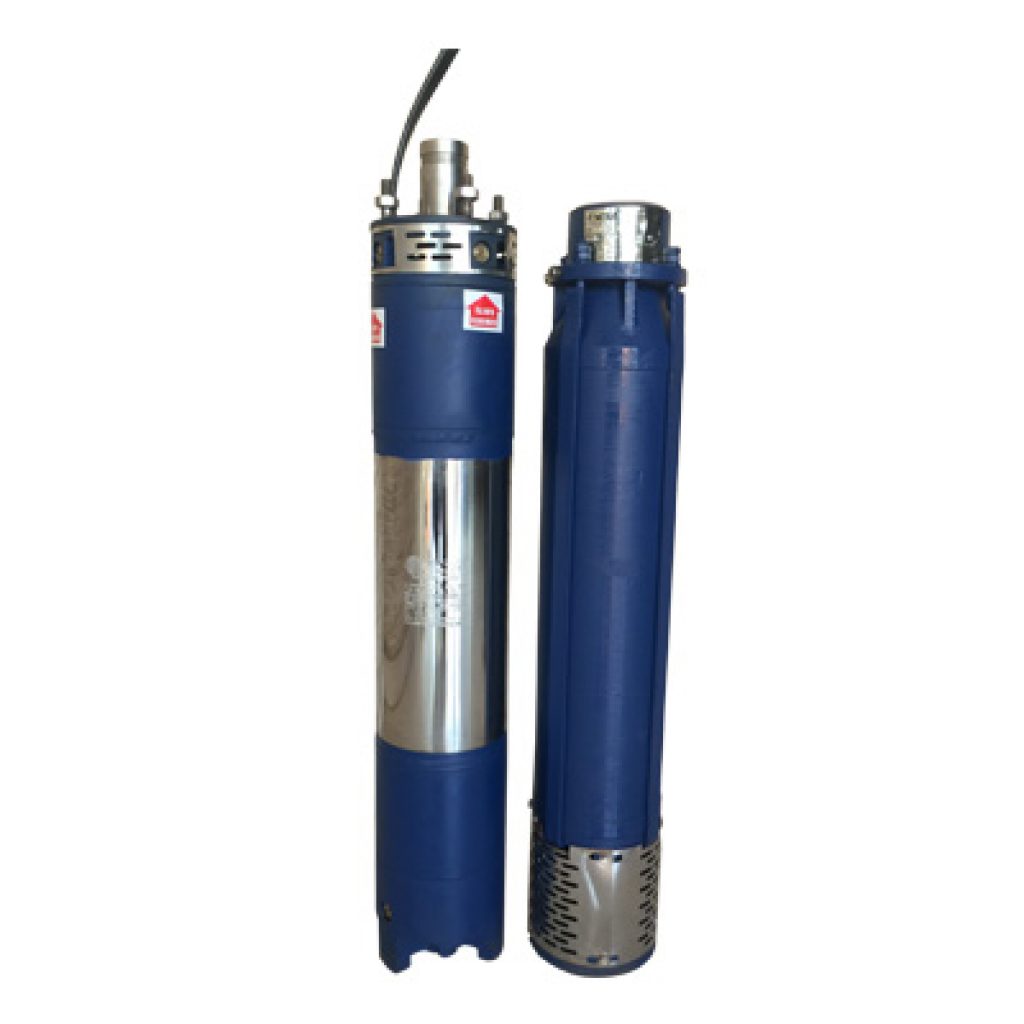

PERFORMANCE TABLE
|
Radial Flow
|
Borewell Size :150.0 mm
Pump O.D. :142.0 mm Motor O.D.:142.0 mm |
|||||||||||
| Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
| Discharge in L.P.M. | |||||||||||||
| 0 | 50 | 105 | 140 | 170 | 190 | 210 | |||||||
| 1 | NR5-50 | 3 | 6 | Total Head in Meters | 60 | 54 | 48 | 42 | 36 | 30 | 24 | D.O.L | 1.5 |
| 2 | NR5-50 | 4 | 8 | 80 | 72 | 64 | 56 | 48 | 40 | 32 | D.O.L | 1.5 | |
| 3 | NR5-50 | 5 | 10 | 100 | 90 | 80 | 70 | 60 | 50 | 40 | D.O.L | 2.5 | |
| 4 | NR5-50 | 6 | 12 | 120 | 108 | 96 | 84 | 72 | 60 | 48 | D.O.L | 2.5 | |
| 5 | NR5-50 | 7.5 | 15 | 150 | 135 | 120 | 105 | 90 | 75 | 60 | D.O.L | 2.5 | |
| 6 | NR5-50 | 10 | 20 | 200 | 180 | 160 | 140 | 120 | 100 | 80 | S / D | 2.5 | |
| Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
| Discharge in L.P.M. | |||||||||||||
| 0 | 90 | 145 | 180 | 210 | 230 | 250 | |||||||
| 1 | NR5-60 | 3 | 5 | Total Head in Meters | 48 | 45 | 40 | 35 | 30 | 25 | 20 | D.O.L | 1.5 |
| 2 | NR5-60 | 4 | 6 | 57 | 54 | 48 | 42 | 36 | 30 | 24 | D.O.L | 1.5 | |
| 3 | NR5-60 | 5 | 8 | 76 | 72 | 64 | 56 | 48 | 40 | 32 | D.O.L | 2.5 | |
| 4 | NR5-60 | 6 | 10 | 95 | 80 | 70 | 60 | 50 | 40 | 30 | D.O.L | 2.5 | |
| 5 | NR5-60 | 7.5 | 12 | 114 | 108 | 96 | 84 | 72 | 60 | 48 | D.O.L | 2.5 | |
| 6 | NR5-60 | 10 | 16 | 152 | 144 | 128 | 112 | 96 | 80 | 64 | S / D | 2.5 | |
| Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
| Discharge in L.P.M. | |||||||||||||
| 0 | 190 | 215 | 240 | 260 | 270 | 290 | |||||||
| 1 | NR5-80 | 3 | 4 | Total Head in Meters | 40 | 36 | 32 | 28 | 24 | 20 | 16 | D.O.L | 1.5 |
| 2 | NR5-80 | 4 | 5 | 50 | 45 | 40 | 35 | 30 | 25 | 20 | D.O.L | 1.5 | |
| 3 | NR5-80 | 5 | 6 | 60 | 54 | 48 | 42 | 36 | 30 | 24 | D.O.L | 2.5 | |
| 4 | NR5-80 | 6 | 8 | 80 | 72 | 64 | 56 | 48 | 40 | 32 | D.O.L | 2.5 | |
| 5 | NR5-80 | 7.5 | 10 | 102 | 90 | 80 | 70 | 60 | 50 | 40 | D.O.L | 2.5 | |
| 6 | NR5-80 | 10 | 12 | 120 | 108 | 96 | 84 | 72 | 60 | 48 | S / D | 2.5 | |
| Sr. No. | Pump Type | HP. | Stage | Delivery Size 50 mm (2”) | Performance Values | Method of Starting | Recom. Cable in sq. mm | ||||||
| Discharge in L.P.M. | |||||||||||||
| 0 | 250 | 275 | 300 | 320 | 340 | 360 | |||||||
| 1 | NR5-100 | 3 | 3 | Total Head in Meters | 30 | 27 | 24 | 21 | 18 | 15 | 12 | D.O.L | 1.5 |
| 2 | NR5-100 | 4 | 4 | 40 | 36 | 32 | 28 | 24 | 20 | 16 | D.O.L | 1.5 | |
| 3 | NR5-100 | 5 | 5 | 50 | 45 | 40 | 35 | 30 | 25 | 20 | D.O.L | 2.5 | |
| 4 | NR5-100 | 6 | 6 | 60 | 54 | 48 | 42 | 36 | 30 | 24 | D.O.L | 2.5 | |
| 5 | NR5-100 | 7.5 | 8 | 80 | 72 | 64 | 56 | 48 | 40 | 32 | D.O.L | 2.5 | |
| 6 | NR5-100 | 10 | 10 | 110 | 90 | 80 | 70 | 60 | 50 | 40 | S / D | 2.5 | |
