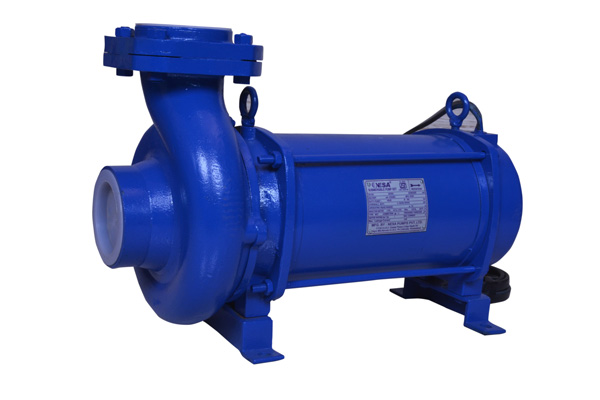

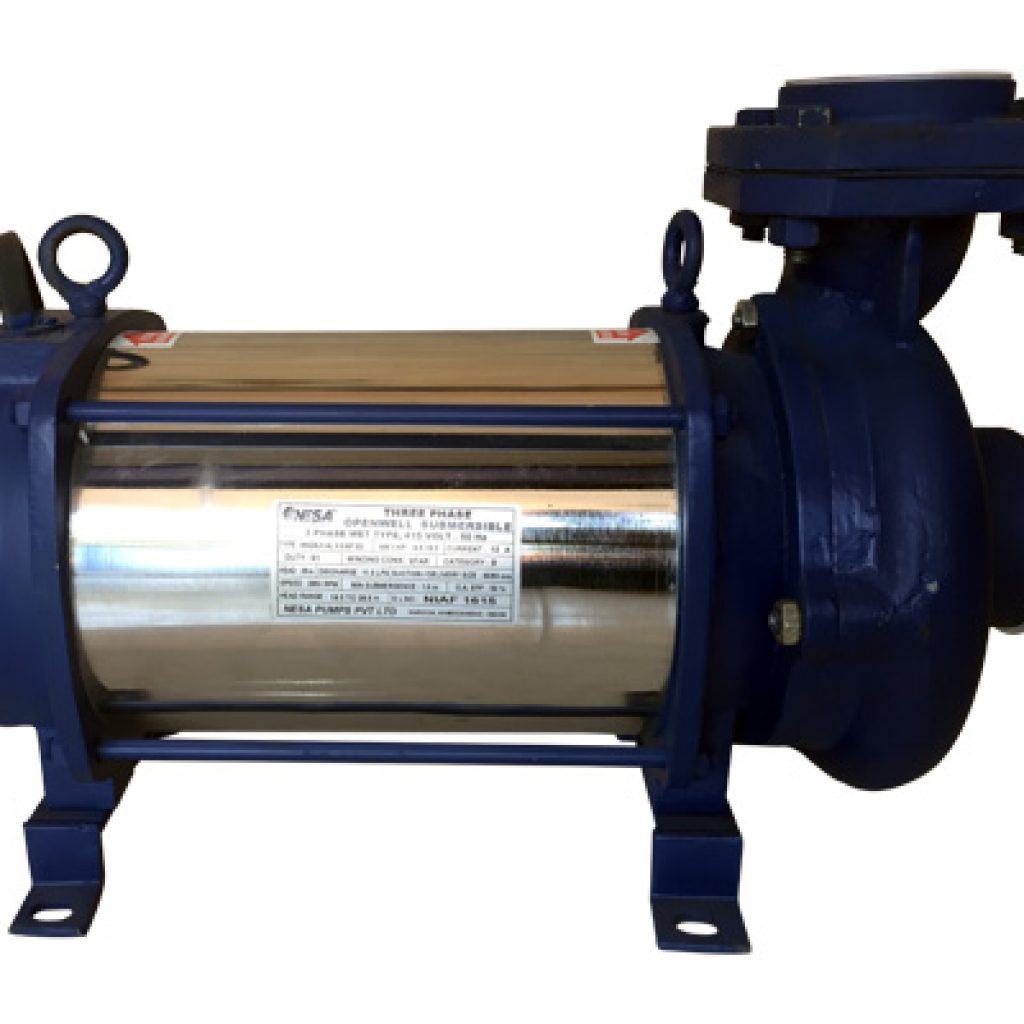

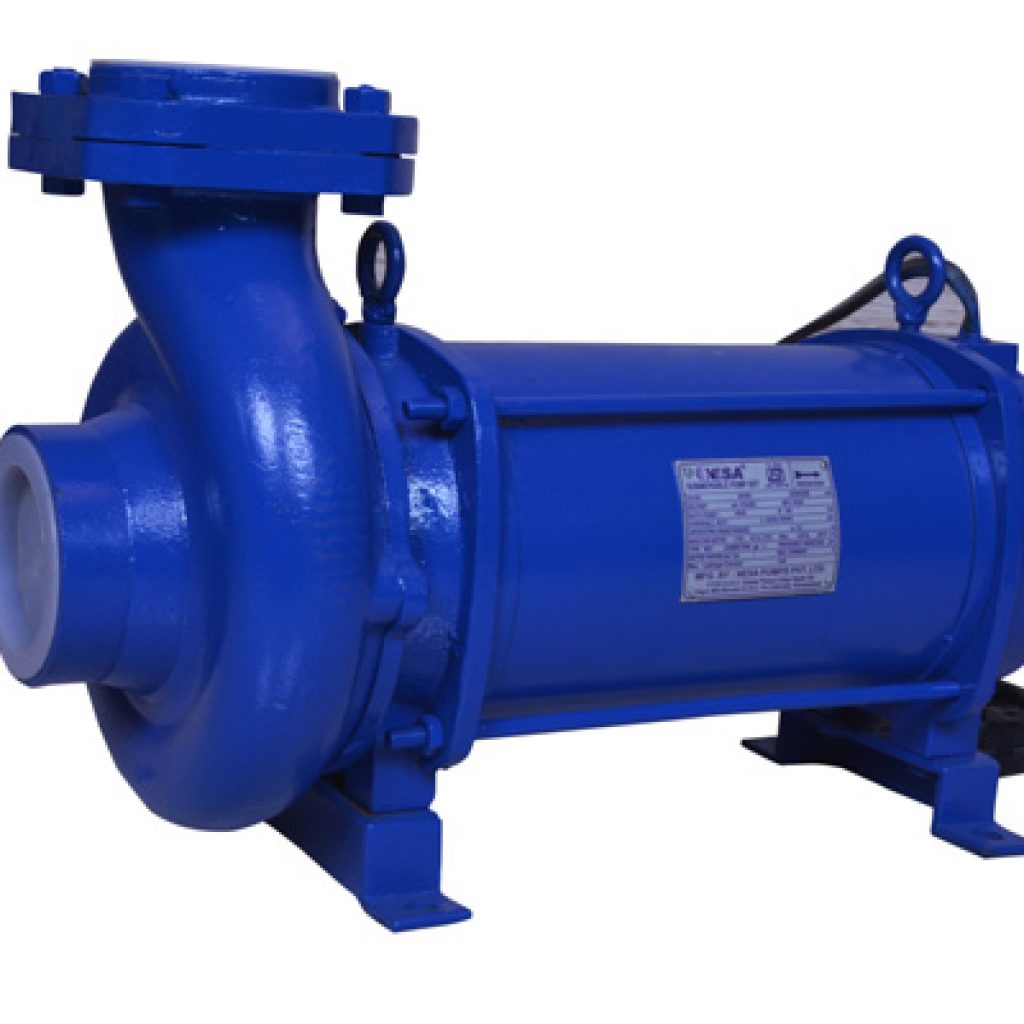

V9 SUBMERSIBLE OPEN WELL CI BODY MONOSETS ALLUMINIUM ROTOR
|
||||||||||||||
| Pump Type | HP. | SUC.*DEL. In mm | Performance Values | |||||||||||
| Total Head In Meters | ||||||||||||||
| 38 | 36 | 34 | 32 | 30 | 28 | 26 | 24 | 22 | 20 | 18 | F/O | |||
| Discharge in Lpm | ||||||||||||||
| NHZ9HH | 3 | 65*50 | – | – | – | – | – | – | – | – | 360 | 425 | 490 | 590 |
| NHZ9LH | 3 | 65*65 | – | – | – | – | – | – | 192 | 289 | 367 | 430 | 484 | 766 |
| NHZ9HH | 5 | 65*50 | 304 | 360 | 403 | 441 | 471 | 499 | 526 | 553 | 583 | 606 | – | 661 |
| NHZ9LH | 5 | 65*65 | – | – | – | – | 496 | 577 | 655 | 715 | 765 | 802 | 835 | 1024 |
| NHZ9HH | 6.5 | 65*50 | 351 | 408 | 451 | 484 | 502 | 513 | 517 | 520 | 522 | 530 | – | 541 |
| NHZ9LH | 6.5 | 65*65 | – | – | – | – | – | 676 | 748 | 814 | 874 | 934 | – | 1210 |
| NHZ9HH | 7.5 | 65*50 | 490 | 530 | 580 | 610 | 649 | – | – | – | – | – | – | – |
| NHZ9LH | 7.5 | 65*65 | – | – | – | 540 | 600 | 630 | 665 | 730 | – | – | – | – |
| NHZ9LH | 7.5 | 80*80 | – | – | – | – | 715 | 812 | 886 | 940 | 1013 | 1044 | 1078 | 1183 |
