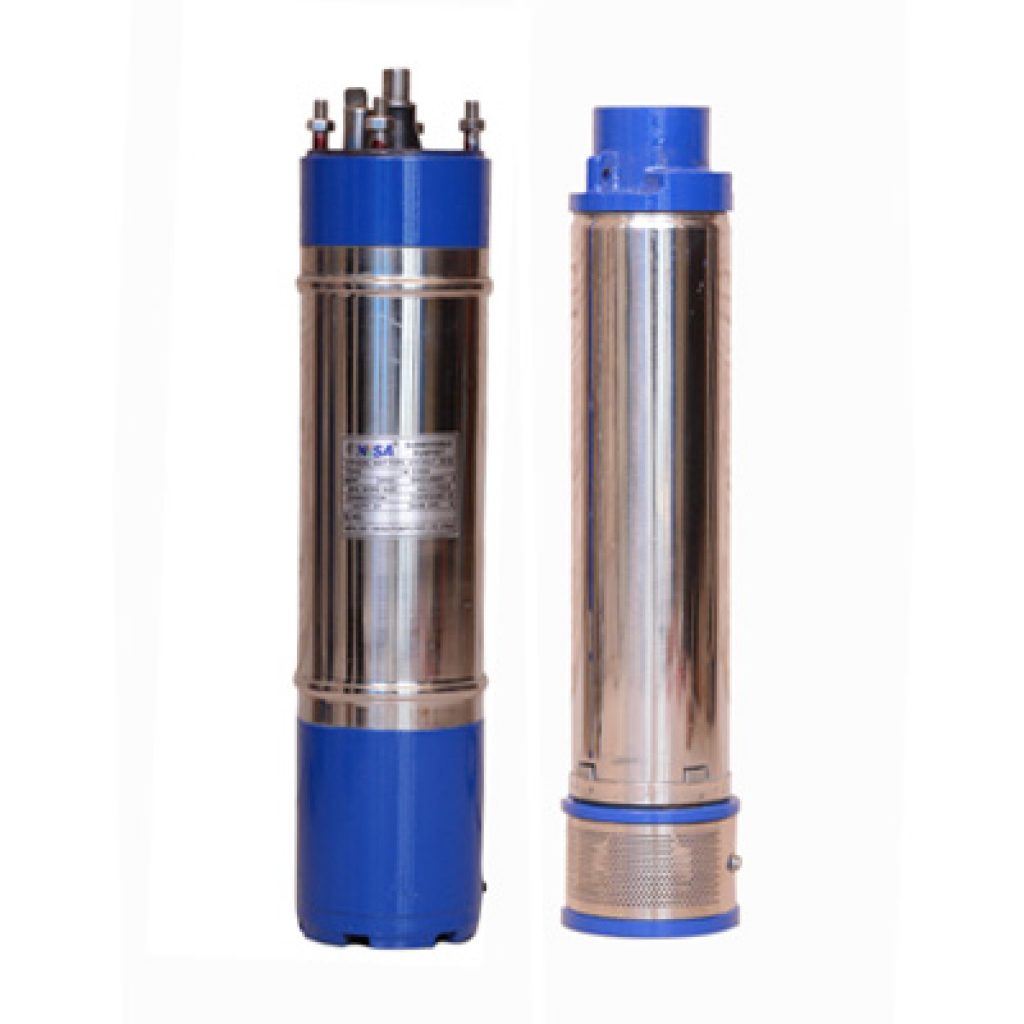

PERFORMANCE TABLE
|
Borewell Size :100MM
|
|||||||||||
| Sr. No. | Pump Type | HP. | Stage | Delivery Size 25 mm (1”) | Performance Values | Method of Starting | ||||||
| Discharge in L.P.M. | ||||||||||||
| 8 | 13 | 21 | 26 | 37 | 43 | 49 | ||||||
| 1 | NV41 | 0.5 | 8 | Total Head in Meters | 40 | 38 | 35 | 32 | 26 | 19 | 8 | CAPACITER START & CAPACITER RUN |
| 2 | NV41 | 0.5 | 9 | 45 | 43 | 40 | 36 | 29 | 22 | 9 | ||
| 3 | NV41 | 0.75 | 12 | 60 | 58 | 53 | 48 | 38 | 29 | 12 | ||
| 4 | NV41 | 1 | 15 | 75 | 72 | 66 | 60 | 48 | 36 | 15 | ||
| 5 | NV41 | 1 | 16 | 80 | 77 | 70 | 64 | 51 | 38 | 16 | ||
| 6 | NV41 | 1.5 | 20 | 100 | 96 | 88 | 80 | 64 | 48 | 20 | ||
| 7 | NV41 | 1.5 | 22 | 110 | 106 | 97 | 88 | 70 | 53 | 22 | ||
| 8 | NV41 | 1.5 | 25 | 125 | 120 | 110 | 100 | 80 | 60 | 25 | ||
| Sr. No. | Pump Type | HP. | Stage | Delivery Size 25 mm (1”) | Performance Values | Method of Starting | ||||||
| Discharge in L.P.M. | ||||||||||||
| 24 | 30 | 39 | 44 | 56 | 64 | 71 | ||||||
| 1 | NV42 | 0.5 | 6 | Total Head in Meters | 30 | 29 | 26 | 24 | 19 | 14 | 6 | CAPACITER START & CAPACITER RUN |
| 2 | NV42 | 0.5 | 7 | 35 | 34 | 31 | 28 | 22 | 17 | 7 | ||
| 3 | NV42 | 0.75 | 9 | 45 | 43 | 40 | 36 | 29 | 22 | 9 | ||
| 4 | NV42 | 0.75 | 10 | 50 | 48 | 44 | 40 | 32 | 24 | 10 | ||
| 5 | NV42 | 1 | 12 | 60 | 58 | 53 | 48 | 38 | 29 | 12 | ||
| 6 | NV42 | 1.5 | 16 | 80 | 77 | 70 | 64 | 51 | 38 | 16 | ||
| 7 | NV42 | 1.5 | 18 | 90 | 86 | 79 | 72 | 58 | 43 | 18 | ||
| 8 | NV42 | 2 | 25 | 125 | 120 | 110 | 100 | 80 | 60 | 25 | ||
| Sr. No. | Pump Type | HP. | Stage | Delivery Size 32 mm (1.25”) | Performance Values | Method of Starting | ||||||
| Discharge in L.P.M. | ||||||||||||
| 38 | 45 | 57 | 65 | 83 | 96 | 107 | ||||||
| 1 | NV44 | 0.75 | 7 | Total Head in Meters | 35 | 34 | 31 | 28 | 22 | 17 | 7 | CAPACITER START & CAPACITER RUN |
| 2 | NV44 | 1 | 9 | 45 | 43 | 40 | 36 | 29 | 22 | 9 | ||
| 3 | NV44 | 1 | 10 | 50 | 48 | 44 | 40 | 32 | 24 | 10 | ||
| 4 | NV44 | 1.5 | 13 | 65 | 62 | 57 | 52 | 42 | 31 | 13 | ||
| 5 | NV44 | 1.5 | 14 | 70 | 67 | 62 | 56 | 45 | 34 | 14 | ||
| 6 | NV44 | 1.5 | 15 | 75 | 72 | 66 | 60 | 48 | 36 | 15 | ||
| 7 | NV44 | 2 | 16 | 80 | 77 | 70 | 64 | 51 | 38 | 16 | ||
| 8 | NV44 | 2 | 18 | 90 | 86 | 79 | 72 | 58 | 43 | 18 | ||
| 9 | NV44 | 2 | 20 | 100 | 96 | 88 | 80 | 64 | 48 | 20 | ||
| Sr. No. | Pump Type | HP. | Stage | Delivery Size 38 mm (1.5”) | Performance Values | Method of Starting | ||||||
| Discharge in L.P.M. | ||||||||||||
| 66 | 76 | 91 | 103 | 126 | 145 | 162 | ||||||
| 1 | NV45 | 0.75 | 5 | Total Head in Meters | 25 | 24 | 22 | 20 | 16 | 12 | 5 | CAPACITER START & CAPACITER RUN |
| 2 | NV45 | 1 | 6 | 30 | 29 | 26 | 24 | 19 | 14 | 6 | ||
| 3 | NV45 | 1.5 | 9 | 45 | 43 | 40 | 36 | 29 | 22 | 9 | ||
| 4 | NV45 | 1.5 | 10 | 50 | 48 | 44 | 40 | 32 | 24 | 10 | ||
| 5 | NV45 | 2 | 12 | 60 | 58 | 53 | 48 | 38 | 29 | 12 | ||
| Sr. No. | Pump Type | HP. | Stage | Delivery Size 38 mm (1.5”) | Performance Values | Method of Starting | ||||||
| Discharge in L.P.M. | ||||||||||||
| 113 | 121 | 133 | 142 | 161 | 179 | 195 | ||||||
| 1 | NV47 | 1 | 5 | Total Head in Meters | 25 | 24 | 22 | 20 | 16 | 12 | 5 | CAPACITER START & CAPACITER RUN |
| 2 | NV47 | 1.5 | 7 | 35 | 34 | 31 | 28 | 22 | 17 | 7 | ||
| 3 | NV47 | 1.5 | 8 | 40 | 38 | 35 | 32 | 26 | 19 | 8 | ||
| 4 | NV47 | 2 | 9 | 45 | 43 | 40 | 36 | 29 | 22 | 9 | ||
| 5 | NV47 | 2 | 10 | 50 | 48 | 44 | 40 | 32 | 24 | 10 | ||
